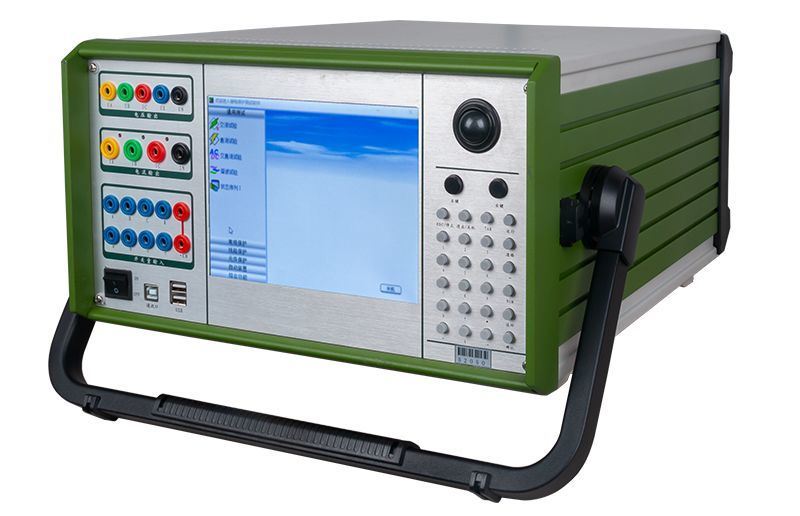

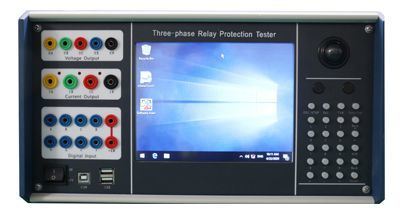

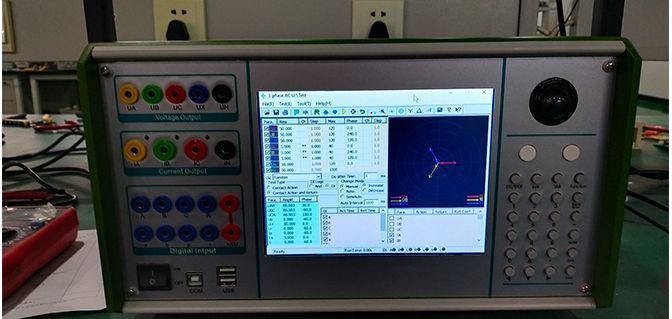

Professional Three-Phase Microcomputer Relay Protection Tester for Protection Testing

Certification : CE, ISO

Brand Name : XZH TEST

Model Number : XHJB634

Place of Origin : Xi'an, Shaanxi, China

MOQ : 1 unit

Payment Terms : T/T

Supply Ability : 2000 PCS/Year

Delivery Time : 5-8 days

Packaging Details : wooden case

Model NO. : XHJB634

Power : Electricity

Customized : Customized

Color : Green

Display : 8.4-Inch Large-Screen

Unit Weight : 20kg

Power Supply : AC 220V±10%, 50/60Hz

Ambient Temperature : -10ºC~+50ºC

Transport Package : Wooden Box with Foam Inside

Trademark : XZH TEST

Customization : Available

Warranty : 12month

Contact Now

Professional Three-Phase Microcomputer Relay Protection Tester for Protection Testing


Product Description

XHJB634 microcomputer relay protection calibrator is a new type of miniaturized microcomputer relay protection tester fully realized by modern advanced microelectronic technology.


Features:

Output up to 4-phase voltage 3-phase current
1.AC/DC Test
2.The state series
3.Harmonic Superposition Test
4.High-Low Frequency Test
5.Power Direction & Impedance Test
6.Synchronization Test
7.Full Group Test:the static simulation test of relay protection tester
8.Distance & Zero Sequence Protection
9.Characteristic of Impedance
10.Differential Protection
11.Differential Harmonic
12.Comprehensive Test of Line Protection of 6-35 KV Microcomputer


Main technical parameters of the tester:

AC current output
Phase current output (effective value) 0~40A,
Output Precision 0.2 degree
3 phase parallel current output (effective value) 0~120A
A Long-time Phase current 10A
Maximum output power of Phase current 450VA
Maximum output power of 3 parallel current 900VA
Maximum Permitted work time of 3 parallel curren 10S
Frequency range ( fundamental) 20~1000Hz
Harmonic time 2~20
DC current output
Current output 0~±10A / phase, 0~±30A / 3 parallel
Output Precision 0.5 degree
AC voltage output
Phase voltage output (effective value) 0~120V
Output Precision 0.2 degree
Line voltage output (effective value) 0~240V
Phase voltage / Line phase output power 80VA / 100VA
Frequency range (fundamental) 20~1000Hz
Harmonic time 1~20
DC voltage output
Phase voltage output range 0~±160V
Output Precision 0.5 degree
Line voltage output range 0~±320V
Phase voltage / Line phase output power 70VA / 140VA
10 path digital input and 8 path digital output
Time measuring range 0.1ms ~ 9999s
accuracy of measurement <0.1ms
Volume & weight 400×360×160mm³ ,15kg
